Descripción

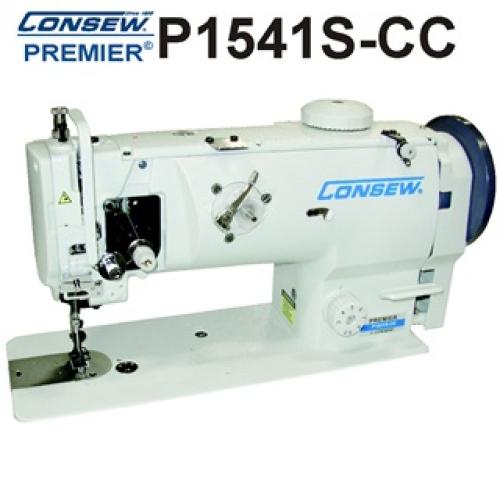

Drop Feed | Needle Feed | Walking Foot | Lockstitch Machine
FEATURES
• Automatic Lubrication System
• Large Horizontal Automatically Oiled Hook
• Needle Frame Stabilizer
• Barrel-type Slip Bearing Safety Clutch
• High Needle Bar Stroke
• High Presser Foot Lift

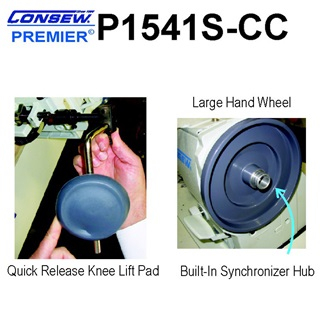

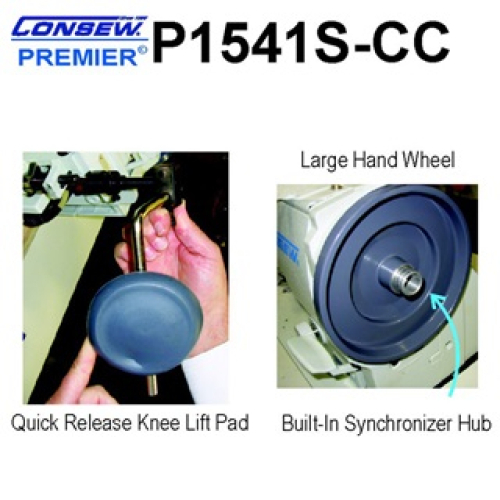

• Quick Release Knee Presser Pedal
• Easy dial-adjustable stitch regulator
• Reverse
• Large Side-Loaded Bobbin
• Built-In Bobbin Winder
• Built-In Synchronizer Hub
• Hanged Face Plate
• Improved feeding motion for all thicknesses of materials without gathering

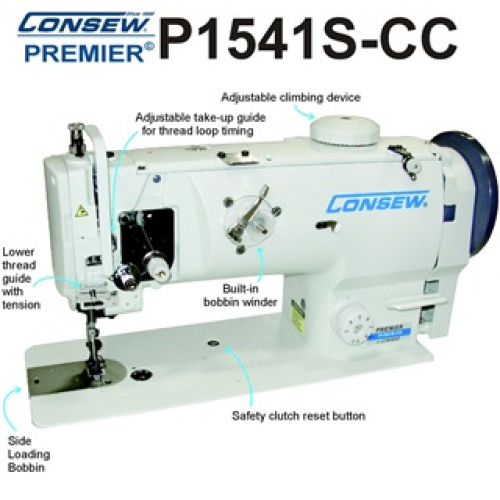

• Adjustable Take-Up Guide for thread loop timing
• Adjustable Climbing Device
• Lower thread guide with tension
• Large Hand Wheel
SPECIFICATIONS
• Speed, Max. (S.P.M.): 2800 *Speed depends on thread, material and operation.
• Presser Foot Lift: By Hand- 23/64" (9 mm) / By Knee- 5/8" (16 mm)
• Needle Bar Stroke: 1-27/64" (36 mm)
• Stitch Length, Max: 2.8 s.p.i. (9 mm)
• Work Space: 10-1/4" x 3-15/16" (260 x 100 mm)
• Needle: 135 x 17
• Pre-wound Bobbin: M
Specifications
| Number of Needles |
1 (Single) |
| Feeding Mechanism |
Walking Foot |
| Workspace |
Standard Workspace |
| Standard or Full Function |
Standard Functions |
| Stitch Type |
301 |
| Stitch Length |
4 s.p.i. (6.5mm) |
| Weight |
179 lbs (81kg) |
