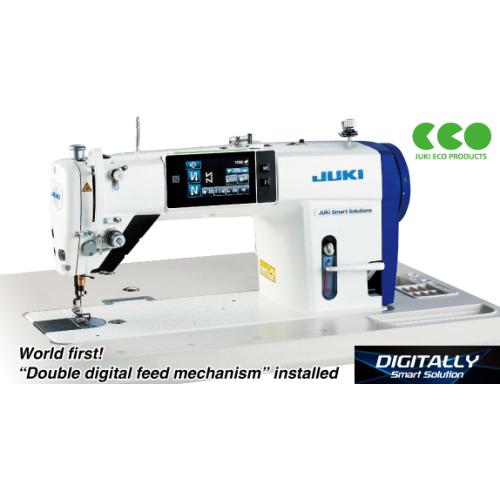

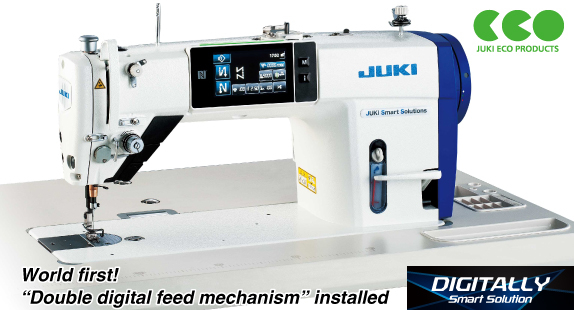

Direct-drive, high-speed, lockstitch sewing system
with automatic thread trimmer
Creation of “sewing”..
A state-of-the-art sewing system that revolutionizes the perfection for “sewing”.
Succeeding the traditionally required experience and instincts, digitalized setting capability in JUKI’s all new DDL-9000C digital sewing system presents the best sewing conditions everywhere and anywhere.
Specification
| MODEL |
DDL-9000C-FDS |
DDL-9000C-FMS |
DDL-9000C-FSH |
| Type |
Premium Digital Type |
| Application |
Medium-weight |
Heavy-weight |
| Lubrication |
Fully-dry head type |
Semi-dry |
Minute-quantity lubrication |
| Max. sewing speed |
4,000sti/min* |
5,000sti/min*1 |
4,500sti/min*2 |
| Hand switch |
Provided as standard (At the time of shipment: Hand switches are assigned respectively
with the touch-back switch function and the one-touch changeover switch function.) 5mm |
| Max. stitch length |
5mm |
| Thread trimming method |
Double-edge rotary system |
| Needle bar stroke |
30.7mm |
35.0mm |
| Feed dog height |
0.8mm |
1.2mm |
| Needle thread tension |
Active tension |
| Presser foot pressure |
Electronic control |
| Lift of the presser foot |
By hand: 5.5mm, By knee: 15mm Auto: 1st stage 5.0 mm (*0.1~8.5mm), 2nd stage 8.5 mm (*8.5~13.5mm) *Adjustable on the operation panel |
| Needle |
DB×1·DB×5 (#11)
#9~18 (Nm65~110) |
DB×1·DB×5 (#21)
#20~23 (Nm125~160) |
| Bobbin thread winder |
Built in the top of machine head (provided with the bobbin thread retaining plate) |
| Lubricating oil |
JUKI New Defrix Oil No.1 or JUKI CORPORATION GENUINE OIL 7 (equivalent to ISO VG7) |
| Size of bed |
517×178mm (distance from needle to machine arm: 303mm) |
| Machine head drive |
Compact AC servomotor (400W) that is directly connected to the main shaft (direct-drive system) |
| Power consumption |
520VA |
| Net weight |
Machine head: 40.5kg (with AK-154) |
*sti/min is the abbreviation for “stitches per minute”
*1 Stitch length of 4.00mm or less: 5,000sti/min; Stitch length of 4,05 - 5.00mm: 4,000sti/min
*2 Stitch length of 4.00 or less: 4,500sti/min; Stitch length of 4.05 - 5.00mm: 4,000sti/min
